AQUAZONIC® SMART LINK RGBW-LED
DESCRIPTION
The Aqua Zonic® SMART LINK RGBW-LED Slim Series is a highly versatile and smart light set that can achieve a True “Full Spectrum” effect for all kinds of aquarium setups and tropical fishes. The light set comes with a Wi-Fi communicator unit which can be linked to any Wi-Fi-enabled mobile device via the TUYA Smart IoT App to access the full control of the LED color settings and Timer control. The light set is designed with the latest high-power energy-saving RGBW LED chips, it provides a richer color palette so you can achieve more complex forms of color mixing, therefore providing more options for brightness and color tones for more precise performance. With each RGBW LED chip spaced out evenly across the light, it can achieve incredibly uniform light coverage and light penetration across the whole aquarium tank. With the flexible color control, the RGBW LED chip can achieve a higher Color Rendering Index (CRI), so the lights reflect the colors of objects purely, giving higher color reproduction of your beautiful aquarium.
DOWNLOAD APP
Search and download Tuya Smart App from Apple or Google Play Store.
FEATURES
Product Features
 |
Smart app control Lightset can be linked with Wi-Fi-enabled mobile devices via TUYA Smart IoT App to access full control of the LED color settings and Timer control. |
 |
Full Color Spectrum Adjustable True “Full Spectrum” can be achieved with each individual Red, Green, Blue and White LED. |
 |
6 Professional Preset Color Spectrums The App provides professionally optimized color spectrum preset for Tropical Fish, Discus Fish, Planted Tank, Crystal Red Shrimp, Luminous Fish and General Daylight so that the user can easily start using them right away. |
 |
High-power Energy Saving LED RGBW 4-in-1 LED chip provides brighter and richer color palette, more color tones, high-definition uniform color mixing and higher CRI. |
 |
Brightness Adjustable After the desired color spectrum has been selected, the brightness of the overall color can be easily adjusted. |
 |
Lighting Timer The App allows user to select the desired automatic light on and light off time setting. |
Installation

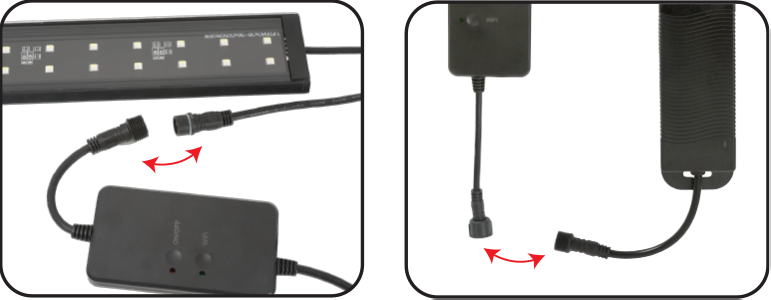

- Connect the output cable connector of the Power Adapter to the input cable connector of the Wi-Fi unit.
- Connect the output cable connector of the Wi-Fi Unit to the input cable connector of the LED light set.
- Connect the Power Adapter’s power plug to the AC Main supply and switch on the power.
- Upon first power up, the Wi-Fi Unit need to be paired with the App on the mobile device. Please follow the instructions to download the Tuya SmartApp.
SPECIFICATIONS
| Model | AL0622 | AL0623 | AL0624 | AL0625 | AL0626 | AL0627 | AL0628 |
| Power (Watt) | 15W | 20W | 30W | 44W | 59W | 74W | 88W |
| No. of RGBW LED Chip | 18pcs | 24pcs | 36pcs | 54pcs | 72pcs | 90pcs | 108pcs |
| Lightset Mounting Adjustable Range | L30-35cm / H13CM | L45-50cm / H13CM | L60-65cm / H13CM | L90-95cm / H13CM | L120-125cm / H13CM | L150-155cm / H13CM | L180-185cm / H13CM |
| Suitable Aquarium Size | 1ft Tank | 1.5ft Tank | 2ft Tank | 3ft Tank | 4ft Tank | 5ft Tank | 6ft Tank |
| Cable Length | 1.5m | 1.5m | 1.5m | 1.5m | 1.5m | 1.5m | 1.5m |
Power Input : 100-250VAC / 50-60Hz
DOWNLOAD INSTRUCTION MANUALS
CAUTION
Important Safety Instructions
Thank you for purchasing the Aqua Zonic® SMART LINK RGBW-LED Slim Series. Please read the instruction manual thoroughly before installation and operation of this appliance. Do not attempt repairs yourself or try to modify the appliance. Failure to do so may result in damage to this product. Should you have any questions regarding after-service care, please contact your local dealer.
Warning ! : Read and FOLLOW ALL safety instructions to avoid hazardous situations which could result in death or serious injury.
Troubleshooting
The lamp does not light up :
• The power supply and cable are not connected properly. Switch on the power supply and check all the cable connections to ensure they are correctly connected.
The Lamp Timer is not accurate, or the Time is out of Sync :
• Connect the mobile device with the Tuya Smart App to the lamp to synchronize the time. The lamp timing will stay in sync after the mobile device is not in operation or is removed.
Timer setting got lost :
• This can be caused by a connection to multiple mobile devices or a power outage. Reset and re-adjust the Timer setting. It is best to avoid multiple mobile devices connected to the same lamp unit when Timer mode is used.
Bluetooth Lamp device cannot be found :
• The Bluetooth setting of the mobile device is not turned on or is used without authorization. Turn on the Bluetooth setting of the mobile device and give access permission to the App.
Safety Instructions and Disclaimers
- This product is not waterproof. Avoid water splashes and immersion during operations.
- The recommended ambient lamp operation temperature is between 0~35°C.
- The lamp should not be used in closed high-humidity areas. Keep the humidity between 20 and 90% during operation. The surface of the lamp should not be subjected to heavy condensation of water droplets.
- It is normal that the surface temperature of the lamp casing and the power adapter is relatively high when the lamp is in operation. Avoid direct body contact during lamp operation.
- The power adapter will get hot during operation. Please place it in a well-ventilated place. Keep out of reach of children.
- Please do not place the power adapter near flammable materials such as cloth or paper.
- Do not use the product when the mains power cord or power plug is damaged.
- Never look with the eyes directly at the LED light source when it is switched on. Eyes can be damaged and blinded permanently by a strong light source.
- Do not place any objects over the lamp casing that will affect heat dissipation so as to maintain the service life of the LED lamp.
Failure to follow the above-recommended instructions, improper installation of the product, incorrect use, and illegal modification of the product will void the product warranty and the company shall not be responsible for any resulting property damage or personal injury or death.
